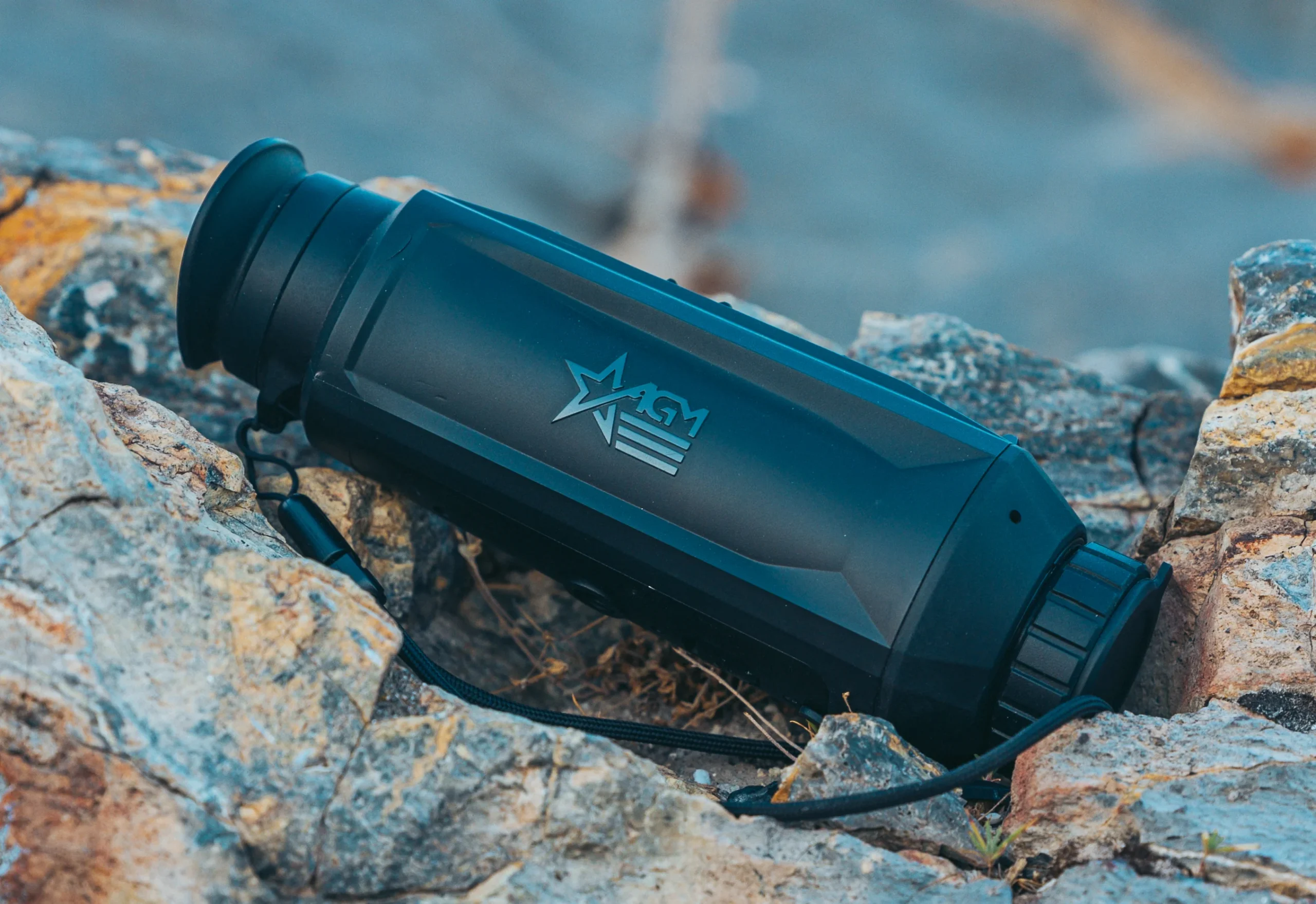

Introduction to AGM Taipan V2 Series
The AGM Taipan V2 Series is a powerful line of handheld thermal monoculars designed to meet the demanding needs of hunters, security professionals, search and rescue teams, and outdoor enthusiasts. Whether you’re navigating dense brush, monitoring livestock at night, or conducting tactical reconnaissance, the Taipan V2 provides clear visuals, precise zoom, and versatile thermal tools in a lightweight body.
Compact Redesign with Enhanced Functionality
Building on the original Taipan’s success, the V2 version features:
More thermal models with higher NETD sensitivity
A removable rechargeable 18650 battery
OLED display upgrade
Tilt-based auto screen-off feature
Key Features of the Taipan V2 Series
Sensor Options and Thermal Resolution
256×192, 320×256, and 384×288 Variants
AGM offers six models in the Taipan V2 lineup:
| Model | Resolution | NETD |
|---|---|---|
| Taipan V2 10-256 | 256×192 | ≤35mK |
| Taipan V2 15-256 | 256×192 | ≤35mK |
| Taipan V2 19-320 | 320×256 | ≤35mK |
| Taipan V2 15-384 | 384×288 | ≤20mK |
| Taipan V2 19-384 | 384×288 | ≤20mK |
| Taipan V2 25-384 | 384×288 | ≤20mK |
These 12μm pixel pitch VOx sensors deliver crisp contrast even in fog, rain, or darkness.
Lens, Focus, and Detection Ranges
Lenses from 10mm to 25mm
- Fixed Focus: V2 10-256, V2 15-256, V2 15-384
- Focus Ring: V2 19-320, V2 19-384, V2 25-384
Detection Ranges
| Model | Detection Range |
|---|---|
| V2 10-256 | 500m |
| V2 15-256 | 750m |
| V2 19-320 | 950m |
| V2 15-384 | 750m |
| V2 19-384 | 950m |
| V2 25-384 | 1200m |
Perfect for everything from short-range scanning to long-range target identification.
OLED Display and Optical Clarity
Display Options
- 1280×960 LCOS: For models with 256 and 320 resolutions
- 1024×768 OLED: For all 384-resolution models
Features:
- Adjustable brightness, contrast, tone (cold/warm), and sharpness
- 10 brightness and contrast levels
- Comfortable 20mm eye relief
Zoom Capabilities and Digital Magnification
4-Step Digital Zoom
Depending on the model:
| Model | Digital Zoom Levels |
|---|---|
| V2 10-256 | 1.5×, 3×, 6×, 12× |
| V2 15-256 | 2×, 4×, 9×, 17.5× |
| V2 19-320 | 3×, 6×, 11×, 22.5× |
| V2 15-384 | 1.5×, 3×, 6×, 12× |
| V2 19-384 | 2×, 4×, 8×, 16× |
| V2 25-384 | 2.5×, 5×, 10×, 20× |
Color Palettes and Image Calibration
Four Color Modes
- White Hot
- Black Hot
- Red Hot
- Fusion
Calibration Modes
- Auto
- Semi-Auto
- Manual
Use image calibration for display correction and Defective Pixel Correction (DPC) for eliminating minor image blemishes.
Video, Audio, and Snapshot Recording
16GB Built-in Memory
- Record audio and video with timestamps
- Capture still snapshots
- Enable Recoil Activated Video (RAV)
Files can be exported via USB or AGM Connect App.
Wi-Fi and AGM Connect App Features
- Wi-Fi Hotspot: Secure password-enabled streaming
- Control image settings remotely (zoom, contrast, palette)
- Export videos/photos to mobile devices
- View live feed on your phone
Battery and Runtime
- Replaceable 18650 Li-ion Battery
- 7+ hours runtime (depends on model and features used)
- USB Type-C charging
- Auto Screen-Off and Auto Power-Off for energy conservation
Controls and On-Screen Display Interface
- Power: Wake/Sleep/Shutdown
- Zoom: Digital steps and image calibration
- Capture: Snapshot or record video
- Menu: Enter/Exit UI, palette selection, toggle settings
The OSD interface includes:
- Battery level
- Storage status
- Magnification
- Wi-Fi status
- Time/Date
Advanced Functional Tools
- Picture-in-Picture (PIP) mode
- Hot Spot Tracking with green crosshair
- Stadiametric Rangefinder (pre-set animal heights)
- Burn Prevention Mode to protect sensor from high-heat sources
- Scene Modes: General / Compressed
Build Quality and Environmental Ratings
Weighs only 0.27–0.31 kg depending on model
IP67 waterproof rating
Shock-resistant
Works from -30°C to +55°C
Specifications Table: All Taipan V2 Models
| Model | Resolution | Lens | Detection | Focus | Zoom Max | Display | Battery |
|---|---|---|---|---|---|---|---|
| V2 10-256 | 256×192 | 10mm | 500m | Fixed | 12× | 1280×960 LCOS | 7h |
| V2 15-256 | 256×192 | 15mm | 750m | Fixed | 17.5× | 1280×960 LCOS | 7h |
| V2 19-320 | 320×256 | 19mm | 950m | Ring | 22.5× | 1280×960 LCOS | 6h |
| V2 15-384 | 384×288 | 15mm | 750m | Fixed | 12× | 1024×768 OLED | 6.5h |
| V2 19-384 | 384×288 | 19mm | 950m | Ring | 16× | 1024×768 OLED | 6.5h |
| V2 25-384 | 384×288 | 25mm | 1200m | Ring | 20× | 1024×768 OLED | 6.5h |
Pros and Cons of AGM Taipan V2
Use Case Scenarios
Law enforcement surveillance and night patrols
Hunting in dense brush or open plains
Livestock protection from nocturnal predators
Search and rescue in rugged terrain
Marine use during low-visibility conditions
Final Verdict: Is AGM Taipan V2 Worth It?
The AGM Taipan V2 is a field-ready thermal monocular with a broad range of model options tailored for beginners and professionals alike. Whether you need a compact fixed-focus tool or a long-range OLED monocular with 1200m detection, the V2 series delivers high thermal performance, rugged reliability, and a modern feature set—at a competitive price point.
FAQs: AGM Taipan V2 Series
Only use protected 18650 cells, 3.6V 3.35Ah as specified.
No, only internal 16GB storage is available.
Yes, Recoil-Activated Video (RAV) is supported.
This device has no reticle—it is not a riflescope.
Yes, with IP67 waterproof certification.
