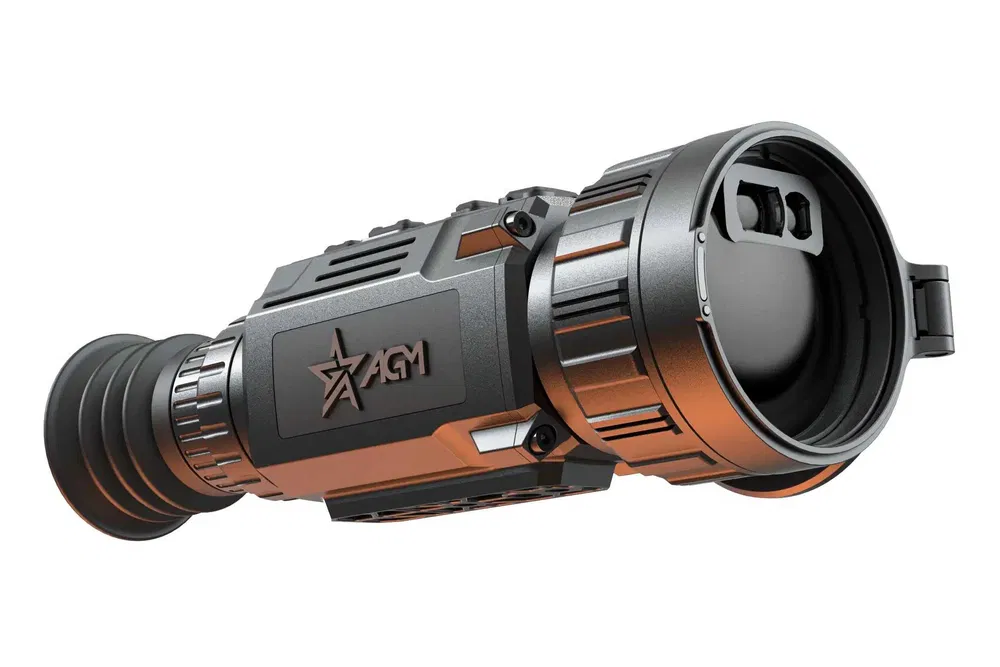

Introducing the Rattler V3 Series
The AGM Rattler V3 LRF 50-640 sets a new benchmark in tactical and hunting-grade thermal optics. Featuring premium-grade thermal resolution, a powerful laser rangefinder, onboard ballistic computation, and AI-enhanced imaging, this rugged scope is built for shooters who require pinpoint accuracy, responsive visuals, and no-compromise long-range engagement.
Compact Innovation for Pro Users
With a size similar to many digital scopes, the Rattler V3 includes a large 50mm F1.0 lens, integrated 64GB media storage, onboard mic, and a 2560×2560 OLED display, all within a weatherproof IP67 chassis.
Best Use Cases for the V3 Line
Search and rescue in low-visibility terrain
Night hunting in open fields
Long-range precision targeting
Tactical overwatch or military deployment
Key Features of the Rattler V3
Thermal Sensor Performance
640×512 VOx Sensor
The Rattler V3 uses a 12μm uncooled VOx sensor with 640×512 resolution, offering rich thermal contrast and the ability to distinguish targets through brush, fog, and pitch-black darkness.
Sub-15mK Sensitivity & Shutterless Operation
- NETD ≤15mK: Captures subtle temperature variations
- Shutterless core: Delivers real-time imaging with no screen blackout or mechanical shutter sounds
Lens and Detection Capabilities
50mm F1.0 Lens
The large-aperture F1.0 lens gathers more infrared energy, boosting low-contrast target visibility at long distances.
Detection Range Up to 3540m
- Vehicle-sized targets: Up to 3540 meters
- Human-sized targets: Up to 1800–2000 meters
High-Res Display and Imaging Tech
2560×2560 OLED Display
The circular AMOLED display offers:
- Exceptional pixel density
- Ultra-clear reticle rendering
- Seamless eye alignment with natural sight picture
Image Boost 2.0 & Zoom Pro
- Image Boost: Sharpens edges, improves clarity
- Zoom Pro: Maintains image structure during digital zooming
Magnification and Zoom Options
3.5× Base to 28× Max
Zoom smoothly from 3.5× to 28× using step or continuous zoom modes.
PIP Mode and Freeze Zeroing
- PIP (Picture-in-Picture): Displays 2× zoom inset without losing full-frame vision
- Freeze Zeroing: Capture image and align reticle without holding steady under recoil
Laser Rangefinder Integration
905nm Eye-Safe Class 1 LRF
The LRF is seamlessly integrated and offers:
- Ranging distance: Up to 1200m
- Accuracy: ±1 meter
- Modes: Single and continuous scan
±1m Accuracy with Built-in Calculator
Pairs with ballistic engine for instant holdover recommendations—critical for ethical long-range shooting.
Reticle and Zeroing Profiles
10 Reticle Options
Choose from 10 reticle patterns with color options (red, green, black, white) for any light condition.
5 Zeroing Profiles and Freeze Mode
Store zeroing setups for five rifles or ammo loads, each with unique magnification, reticle, and correction values.
Ballistic Calculator and Onboard Tools
Automatic Holdover with Range Data
When LRF is used, the ballistic calculator auto-displays holdover markings, helping shooters compensate without guesswork.
Hot Track, Distance, and Pitch Tools
- Hot Track: Locks onto warmest object
- Stadiametric ranging: Manual target height-based distance estimate
- Incline angle and compass readout: Display pitch, heading, and elevation info
Recording and Media Features
64GB Built-in Storage
Ample space for:
- Recoil-activated videos (RAV)
- Photo snapshots
- Microphone-enabled audio
All footage is timestamped and stored in standard formats for easy sharing and editing.
Wi-Fi Streaming and Mobile Sync
Hotspot & AGM App Support
- Use the AGM Connect app to:
- View and record live feed
- Transfer media wirelessly
- Adjust scope settings remotely
Power System and Battery Runtime
NE-4400 Battery Pack
- Rechargeable Li-ion pack
- USB-C quick-charge supported
≥5.5 Hours Operation + USB-C Support
For extended missions, connect a power bank via USB-C to continue using without swapping batteries.
Build Quality and Durability
- IP67 rating: Waterproof and dustproof
- Shock resistance: Up to 1000g / 0.4ms
- Temperature range: Operates in -30°C to +55°C
This is a true field-grade optic—ready for rain, dust, and recoil from high-powered calibers.
Specifications Table: Rattler V3 LRF 50-640
| Feature | Specification |
|---|---|
| Sensor | 640×512 VOx, 12μm |
| NETD | ≤15mK |
| Lens | 50mm, F1.0 Manual Focus |
| Detection Range | 3540m (vehicle) |
| Magnification | 3.5x–28x |
| Display | 2560×2560 AMOLED |
| LRF | 905nm, 1200m, ±1m accuracy |
| Reticles | 10 types, 4 color options |
| Recording | Video, Photo, Audio, RAV |
| Storage | 64GB Internal |
| Battery | NE-4400 Pack, USB-C Support |
| Runtime | ≥5.5 hours |
| Waterproof Rating | IP67 |
| Shock Rating | 1000g/0.4ms |
| Weight | 690g (w/ battery) |
| Size | 217 × 71 × 87 mm |
Pros and Cons of the Rattler V3 LRF
Use Case Scenarios
Surveillance and law enforcement tracking
Long-range predator control (coyote, hog, fox)
Military and tactical overwatch roles
SAR missions in foggy or forested terrain
Final Verdict: Should You Buy the Rattler V3?
The AGM Rattler V3 LRF 50-640 offers a winning combination of elite-grade thermal clarity, integrated rangefinding, and onboard ballistic calculation—all in a robust, weatherproof body that’s lighter than many comparable scopes.
If you demand absolute thermal accuracy, multi-profile zeroing, long-range engagement, and video-rich documentation, the V3 is a top-tier investment.
FAQs: AGM Rattler V3 LRF
Yes, via Wi-Fi and the AGM Connect App.
Yes, up to 5 zeroing profiles can be stored.
Yes, via USB-C external power banks.
±1m at ranges up to 1200 meters, using 905nm Class 1 Eye-Safe laser.
Yes, the scope includes a microphone for voice or environmental recording.
