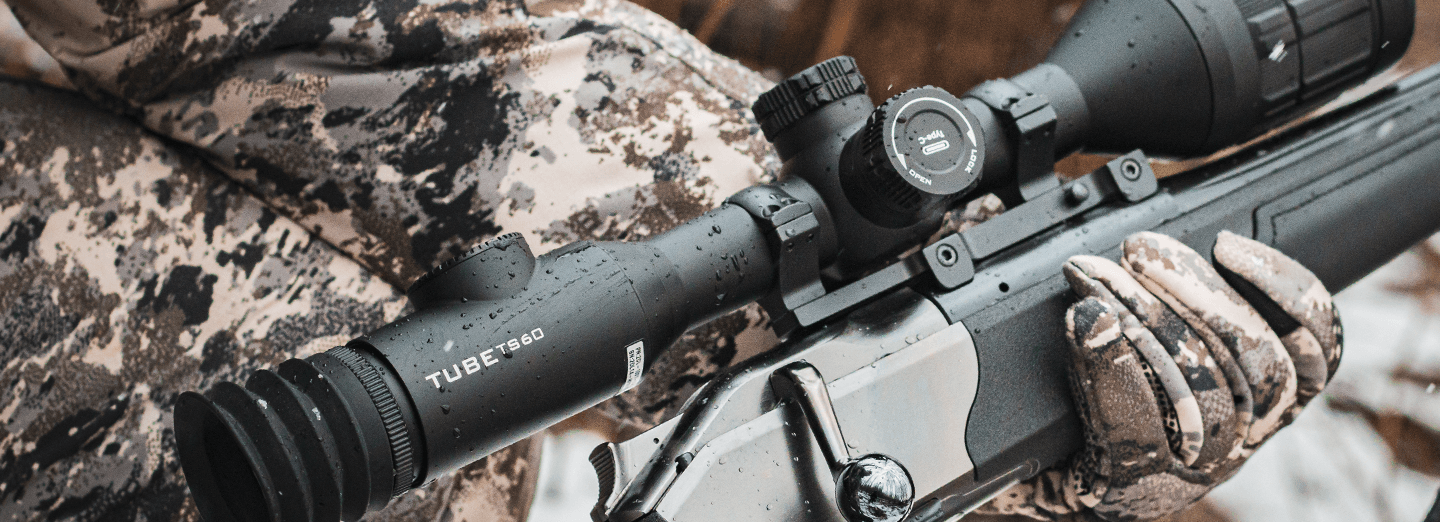

Tube TS60 Review: Ultra-High Resolution Thermal Scope with 1280 Sensor, AMOLED Display & Dual Battery
Introduction to the Tube Series
The InfiRay Outdoor Tube TS60 merges cutting-edge thermal imaging with the classic 30mm riflescope form factor, offering an advanced optical solution that seamlessly integrates into traditional weapon platforms. Built for tactical professionals and hunters, this riflescope combines unmatched image quality with intuitive functionality and robust build quality.
Traditional Design, Cutting-Edge Internals
Unlike bulkier thermal scopes, the Tube TS60 maintains the silhouette of a day optic while packing a 1280 × 1024 thermal sensor, dual battery system, and app-controlled streaming into one of the most advanced thermal imaging systems available today.
Who the TS60 is Built For
The TS60 is tailored for:
Professionals demanding extreme detail in low-contrast environments
Long-range hunters
Tactical snipers
Nighttime observers
Key Features of the TS60
Thermal Sensor and Resolution
1280 × 1024 Resolution @ 12μm
The Tube TS60 features InfiRay’s proprietary VOx thermal detector with a 12-micron pixel pitch—offering ultra-sharp imagery, industry-leading target recognition, and real-time precision under any weather.
NETD ≤18mK Sensitivity
With a Noise Equivalent Temperature Difference (NETD) of ≤18mK, the TS60 excels in capturing minute temperature variations, delivering exceptional clarity through fog, snow, or total darkness.
Lens and Detection Range
60mm F1.0 Optics
The TS60’s large 60mm objective lens with an F1.0 aperture maximizes infrared transmission for bright, clear visuals across all magnification levels.
3100m Human Detection
Using a target size of 1.7m × 0.5m, the TS60 can detect heat signatures from up to 3100 meters away—making it a true long-range champion.
Visual Display Experience
1.03” AMOLED 2560 × 2560
A groundbreaking 2560 × 2560 resolution AMOLED display renders vivid thermal images with true color balance and exceptional contrast.
Cold/Warm Hue and PIP Modes
Customize your visuals with:
- Warm/Cold tone
- Contrast/Brightness adjustments
- Picture-in-Picture (PIP): 2× zoomed overlay on main view for precision aiming
Zoom and Field of View
2× to 32× Digital Zoom
Smooth zoom transitions from 2× base magnification up to 32× using the rotary controller.
Field of View: 25.6×20.5m @ 100m
With a 14.7° × 11.7° angular FOV, it allows excellent situational awareness for broad surveillance and narrow target tracking.
Zeroing and Reticle Controls
Freeze Zeroing and Multiple Profiles
Zero your scope by freezing the target image and adjusting your reticle without shifting position. Store profiles for up to 3 rifles with multiple zeroing distances.
2cm Click Value @ 100m
Zeroing adjustments are precise and intuitive, allowing for seamless transitions between distances.
Laser Rangefinder and Stadiametric Options
Supports External LRF Module
Compatible with the ILR-1200-1 Bluetooth laser rangefinder, which provides:
- 1200m range
- ±1m accuracy
- Bluetooth sync
- Ballistic calculation with auto holdover
Built-in Stadiametric Rangefinder
Use standard animal sizes (deer, boar, hare) to estimate distance if an LRF isn’t available.
Recording and Storage
128GB Internal Memory
Massive internal storage supports:
- Video and audio recording
- Recoil-activated video (RAV)
- Photographing with timestamp
All content is accessible via USB-C or the mobile app.
Wireless and App Integration
Bluetooth and Wi-Fi
The TS60 connects via dual-band Wi-Fi and Bluetooth, allowing for:
- Remote control
- Live preview
- Firmware updates
- Profile and ballistic data management
App-Controlled Settings, Media Sharing
The InfiRay Outdoor app enables users to stream footage, change reticle settings, adjust zeroing profiles, and record live video directly from a smartphone.
Battery and Power Management
Built-in + Replaceable 18650
The TS60 uses a 6600mAh internal battery plus a replaceable 18650 external cell, delivering:
- 9 hours of continuous use
- Hot-swappable 18650 replacement
- USB-C charging
Mounting and Weapon Compatibility
30mm Tube Ring Fit
The Tube TS60 is designed for standard 30mm mounting rings, fitting seamlessly into traditional hunting or tactical rifles.
Rated for up to 6000 Joules
The rugged body and internals can handle heavy recoil, including calibers like .338 Lapua and .375 H&H.
Environmental Resistance
- IP67 waterproof & dustproof
- Shockproof body
- Operating temperature: -20°C to +50°C
Smart Features and Sensors
Includes:
Ultraclear mode
Motion Sensor and Digital Compass
Recoil Activated Video
Ballistic Calculator (with LRF)
Pixel Defect Correction
Status bar auto-hide
Specifications Table: Tube TS60
| Feature | Specification |
|---|---|
| Sensor | 1280 × 1024, VOx, 12μm |
| NETD | ≤18mK |
| Lens | 60mm F1.0 |
| Detection Range | 3100m |
| Display | 1.03” AMOLED, 2560 × 2560 |
| Magnification | 2×–32× |
| Battery Life | 9 hours (dual battery system) |
| Storage | 128GB Internal Memory |
| Wi-Fi/Bluetooth | Yes |
| Rangefinding | Stadiametric + LRF Module Support |
| Mount Type | 30mm standard rings |
| Recoil Resistance | Up to 6000J |
| Protection Level | IP67 |
| Weight | 1000g |
| Dimensions | 384×104×77 mm |
Pros and Cons of the TS60
Best Use Scenarios
Law Enforcement: Perimeter security, urban operations
Hunting: Deer, boar, predator control
Tactical: Recon, overwatch, surveillance
Outdoor Wildlife: Observation, filming, and research
Final Verdict: Should You Buy Tube TS60?
If you’re a professional hunter or tactical marksman seeking exceptional clarity, future-ready features, and long-distance confidence, the InfiRay Tube TS60 delivers on every front. With a class-leading 1280 resolution sensor, advanced app integration, dual-battery architecture, and optional LRF tools, it’s a premium investment that pays off with every pull of the trigger.
FAQs: Tube TS60 Thermal Scope
Yes, via Wi-Fi and the InfiRay Outdoor app.
Up to 3100 meters for human-sized heat sources.
Yes, when paired with the ILR-1200-1 LRF module.
Yes, hot-swappable 18650 batteries are supported.
Absolutely—IP67 rated for full environmental protection.
