Pulsar SYMBION LRF DXT50 Review: Multispectral Binoculars That Combine Thermal, Digital Vision, and Precision Ranging
One Observation Tool for Day, Night, and the Most Demanding Conditions

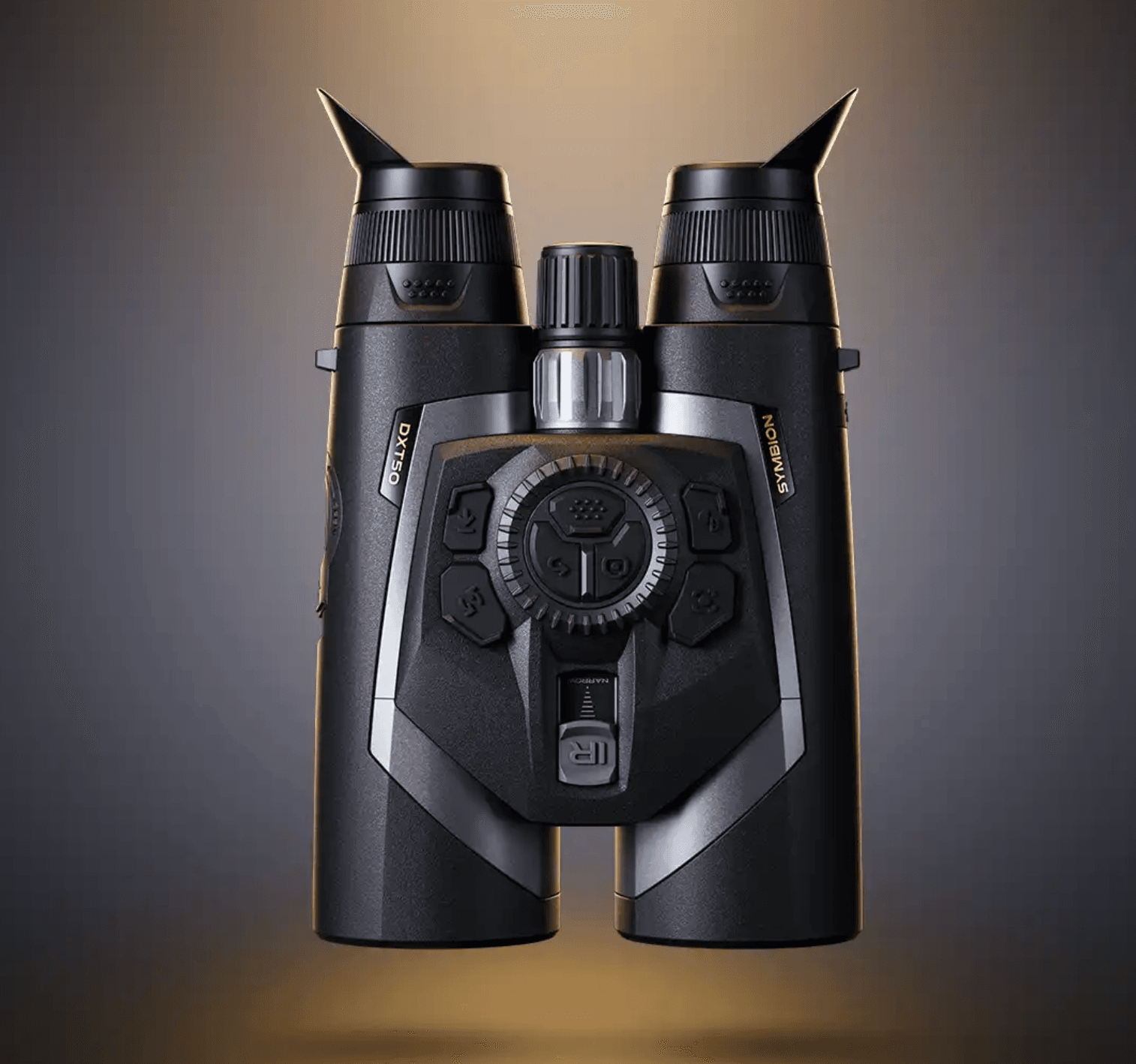

The Pulsar SYMBION LRF DXT50 is a multispectral binocular designed for users who need maximum situational awareness in a single handheld device. By combining a high-resolution thermal channel, a 4K digital day/night channel, and a powerful built-in laser rangefinder, the SYMBION DXT50 delivers flexibility that traditional thermal binoculars or monoculars simply can’t match.
It is built for hunting, search and rescue, wildlife observation, security, and outdoor professionals who operate across changing light conditions and terrain.
Overview: What is the Pulsar SYMBION LRF DXT50?
The SYMBION LRF DXT50 is a dual-channel (multispectral) binocular that allows instant switching between thermal imaging and digital optical vision, as well as simultaneous use of both via DUO Picture-in-Picture mode.
Unlike single-channel devices, SYMBION lets you:
operate comfortably for long observation sessions thanks to binocular ergonomics.
detect heat signatures using thermal imaging,
identify targets visually using a high-resolution digital channel,
measure distance precisely with a 1500 m laser rangefinder,
Key Features of the Pulsar SYMBION LRF DXT50
🔥 High-Resolution Thermal Imaging Channel
- Uncooled thermal sensor with 1280×1024 resolution, 12 µm pixel pitch.
- System NETD <20 mK ensures strong thermal sensitivity and excellent contrast.
- Performs reliably in fog, rain, smog, and low-contrast thermal environments.
- Detection range up to 2300 m (deer-sized target).
This thermal channel is built primarily for detection and situational awareness, even when visual observation is impossible.
👁 4K Digital Day & Night Channel
- 3840×2160 CMOS digital sensor delivers detailed visual imagery.
- Works in:
- full-color daytime mode,
- low-light twilight mode,
- monochrome night modes (with IR illuminator).
- Digital magnification up to 26× with selectable zoom levels.
The digital channel is ideal for positive identification, terrain reading, and observation where color and fine detail matter.
🔀 DUO Multispectral Mode (Thermal + Digital)
- Unique DUO mode allows:
- one channel in the main window,
- the second channel in a Picture-in-Picture (PiP) window.
- Enables instant comparison between heat signature and visual appearance.
This is especially valuable for confirming targets, avoiding misidentification, and improving decision-making.
📏 Built-In Laser Rangefinder (Up to 1500 m)
- Integrated 905 nm laser rangefinder with 1 m accuracy.
- Supports single measurement and continuous SCAN mode.
- Critical for distance estimation during hunting, navigation, and tactical observation.
🎯 Ballistic Calculator Support
- SYMBION LRF integrates with Stream Vision Ballistics via Bluetooth.
- Distance data from the LRF can be used to calculate ballistic corrections when paired with compatible Pulsar riflescopes.
- Adds real tactical value beyond simple observation.
🖥 Full HD AMOLED Displays
- Dual 1920×1080 AMOLED displays provide:
- crisp imagery,
- high contrast,
- reduced eye strain during long sessions.
- Adjustable brightness, contrast, and display shape (rounded or circular).
🧘 Image Stabilization
- Built-in electronic image stabilization reduces shake during handheld use.
- Particularly useful at higher magnification or long observation periods.
- Improves comfort and detail perception without a tripod.
🎥 Photo & Video Recording with Audio
- Built-in recorder supports photo and video capture with sound.
- 64 GB internal memory.
- Useful for documentation, analysis, or sharing observations.
🔋 Dual Battery System & Long Runtime
- Powered by APS 5 quick-change Li-Ion batteries.
- Includes two batteries, providing up to 8 hours of operation.
- USB-C Power Delivery support for external power banks.
🛡 Rugged, Weatherproof Construction
Ergonomic binocular body with tripod mount for stationary observation.
Rated IP67 — waterproof and dustproof.
Designed for real outdoor use in temperatures from -25°C to +40°C.
Technical Specifications SYMBION LRF DXT50
| Feature | Pulsar SYMBION LRF DXT50 |
|---|---|
| Thermal Sensor | 1280×1024, 12 µm |
| Thermal Sensitivity | System NETD <20 mK |
| Thermal Magnification | 2–16× |
| Digital Sensor | 4K CMOS (3840×2160) |
| Digital Magnification | 6.5–26× |
| Lens (Thermal / Digital) | 50 mm F/1.0 |
| Laser Rangefinder | Yes, up to 1500 m |
| Display | AMOLED 1920×1080 |
| Image Stabilization | Yes |
| DUO Mode | Yes (Thermal + Digital PiP) |
| Recording | Photo / Video + Audio |
| Memory | 64 GB |
| Battery | APS 5 (2 included) |
| Runtime | Up to 8 hours |
| Protection | IP67 |
| Weight | ~1 kg |
| Warranty | 3 years |
Pros and Cons of the SYMBION LRF DXT50
Performance of the Pulsar SYMBION LRF DXT50
In real-world use, the SYMBION LRF DXT50 excels as a long-session observation tool. Thermal imaging quickly detects heat sources, while the digital channel confirms identity and details. DUO mode significantly reduces uncertainty when observing animals, people, or objects at long distances.
The laser rangefinder adds a tactical dimension, and image stabilization noticeably improves comfort during extended handheld observation.
Final Thoughts: Is the Pulsar SYMBION LRF DXT50 Worth It?
The Pulsar SYMBION LRF DXT50 is not just a thermal binocular — it’s a complete multispectral observation system. If your tasks involve detection, identification, ranging, and long observation sessions, this device delivers exceptional versatility.
It is especially well-suited for:
✔ Serious hunters
✔ Search & rescue teams
✔ Wildlife researchers
✔ Security and surveillance professionals
If you want one device that works day, night, and in difficult weather, the SYMBION LRF DXT50 is absolutely worth considering.
FAQs: SYMBION LRF DXT50
Yes, the digital channel provides full-color daytime observation.
Thermal channel works in total darkness; digital channel uses IR illumination at night.
Yes, video and audio recording are supported.
Yes, up to 1500 m with 1 m accuracy.
Yes, IP67 rated.
